Industrial 5 Megapixel Camera PCB Testing Machine TCP / IP AOI Inspection Machine

Large Image : Industrial 5 Megapixel Camera PCB Testing Machine TCP / IP AOI Inspection Machine Get Best Price

Product Details:

Place of Origin:	CHINA
Brand Name:	WANBO
Certification:	CE
Model Number:	X1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	discuss price
Packaging Details:	wooden box package
Supply Ability:	100pcs/month

Contact Now

Detailed Product Description

Product Name:	AOI	Inspect PCB:	After Reflow Oven
Camera:	Full Color CCD	Power:	AC220V 50/60HZ
Name:	AOI Inspection Machine	PCBA Size Range:	5050mm~430330mm
Highlight:	Full color CCD pcb testing machine , 5 megapixel pcb testing machine , TCP IP AOI Inspection Machine

pcb testing machine

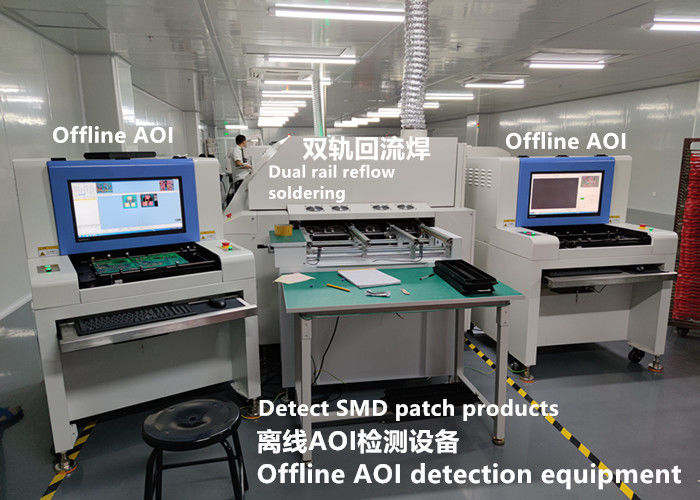

Industrial 5 Megapixel Camera PCB Testing Machine TCP / IP AOI Inspection Machine 0

SZ-X1 Product Specification

Imaging System

Camera 5 megapixel high definition intelligent industrial camera

Camera resolution Standard configuration:15um/PixelFOV:38.0mm*30.0mm;Optional:20um,10um

Light source :RRGB high gray LED light source

Test items

Programming mode :CAD data impor t automatically for component library

After reflux fuenace :

Component: Wrong par ts,missing par ts,polarity,deviation,monument,reversal,damage,lc bending,doreign matter, etc

Solder joints:less tin,more tin,tin hole,bridging,tin coating,false tin,tin bead,etc

Minimum paet test: Theoigh the resolution the minimum measuradle is 03015(01005)chip&0.3 pitch IC

After Wave Soldering :Less tin,more tin,tin hole,false tin,bridge, tin psckage,tin beda,etc

Test PCBA specification

PCBA Size range :50*50mm~430*330mm

Thickness range :0.5~5.0mm

Maximum PCBA Weight :3kg

PCBA cur vature :＜5mm Or 2% of diagonal length

PCBA Height :Top:30mm； Bot:60mm

Check result output :22 Inch LCD,suppor t output OK/ng buff shunt

Extended Function

Bar code System :Automatic barcode recognition(1D&2D)

Remote Control :Remote operstion through TCP/IP

Ser ver Mode :With the central ser ver,multiple Aol data can be centralized and managed

SPC and Program Control :Recoed and analyze the test data in the whole process,and view the production status and quality analysis through remote control

Special funct :Multi connected board multi program detection,a/B side automatic switching program detection function

Imageacquisition and motion control system
Use a top-down shot structure
High definition 10 megapixel industrial lens
High precision ser vo motion system

It is suitable for testing in various production industries
Industrial 5 Megapixel Camera PCB Testing Machine TCP / IP AOI Inspection Machine 1
Sonch is equipped with self-developed high brightness LED light source and powerful software algorithm,which can be used for various PCBA process detection requirements

Industrial 5 Megapixel Camera PCB Testing Machine TCP / IP AOI Inspection Machine 2

Statistical process control(SPC)
Provide detailed repor ts of various production requirements

When the same error occurs more than onceitwill alarm automati- cally

Automatic calculation of weeklymonthly,quar terly cur ves,PPM char t, etc
